- High-Speed Transmission Floating Connectors - Board to Board Connectors "10143 Series"

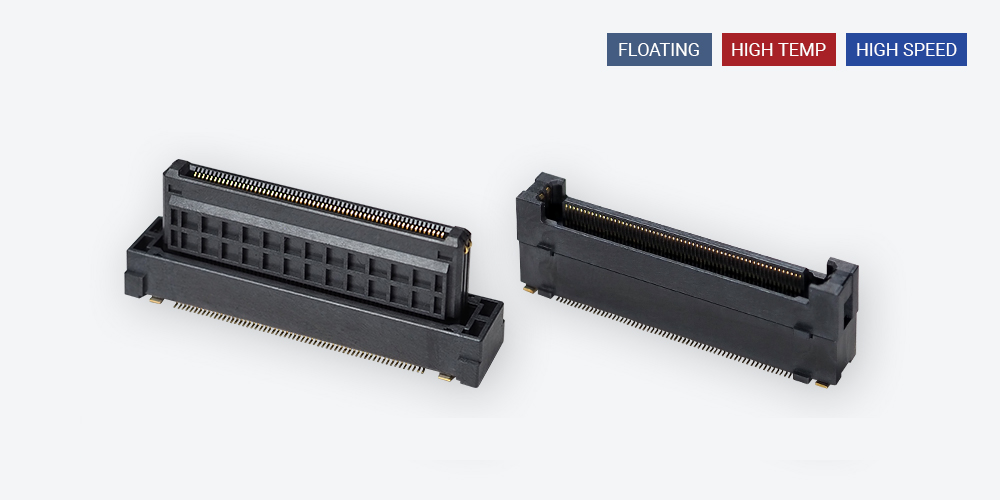

High-Speed Transmission Floating Connectors - Board to Board Connectors "10143 Series"
This product group supports high-speed transmission while maintaining the competitive features of the earlier models, such as the floating type and the Auto I-Lock™ structure. Even if the connectors have terminals with complex structures, their stable impedance profile enables ultrahigh-speed transmission.
- Main Features
- Solutions
- Connector Specifications
- Approximate Dimensions
- Variations
- Development Background
- Functions and Characteristics
- Related Links
Main Features

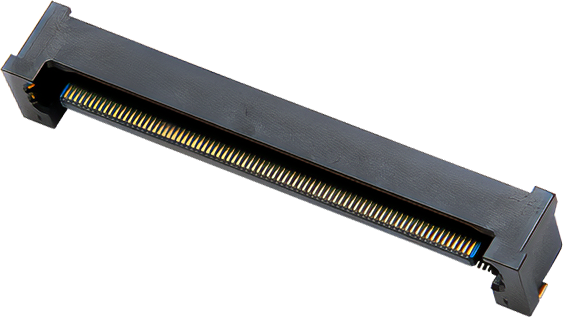

Feature 1: High-Speed Data Transmission of up to 25 Gbps Realizes a Movable Amount That Exceeds the Pitch Width.
The recent trends towards more sophisticated devices and an increase in the information being transmitted has spurred demand for high-speed transmission in connecting components. In addition, the increase in high-frequency components in signals has led to situations where attentions must be paid to minute details that were previously not an issue. Products compatible with High-speed transmission products are optimally designed by organically combining numerous on-site evaluations and simulations.
The 10143 series supports various transmission standards, including PCIe Gen 4, achieving*speed transmission at up to 25Gbps.
Another major feature is that it combines high reliability and ease of use by combining IRISO Electronics' floating structure technology with high-speed transmission.
*When measured according to the "OIF CEI-28G-SR" standard
Related Articles

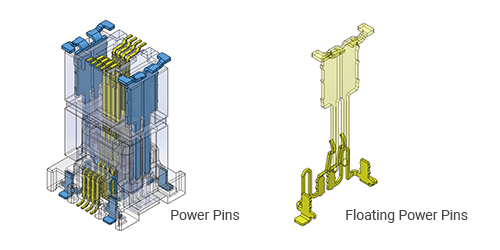

Feature 2: Power Supply Terminals Contributing to Reducing the Size
By locating the power terminals on both ends of the product, there is no need to allocate terminals for power supply, contributing to reducing the size and weight of the connector.
This power terminal also serves as a fixing bracket, making it possible to miniaturize the entire connector, thereby reducing the area that the connector occupies on the board.
Feature 3: Highly Heat-Resistant Connectors for In-Vehicle Equipment

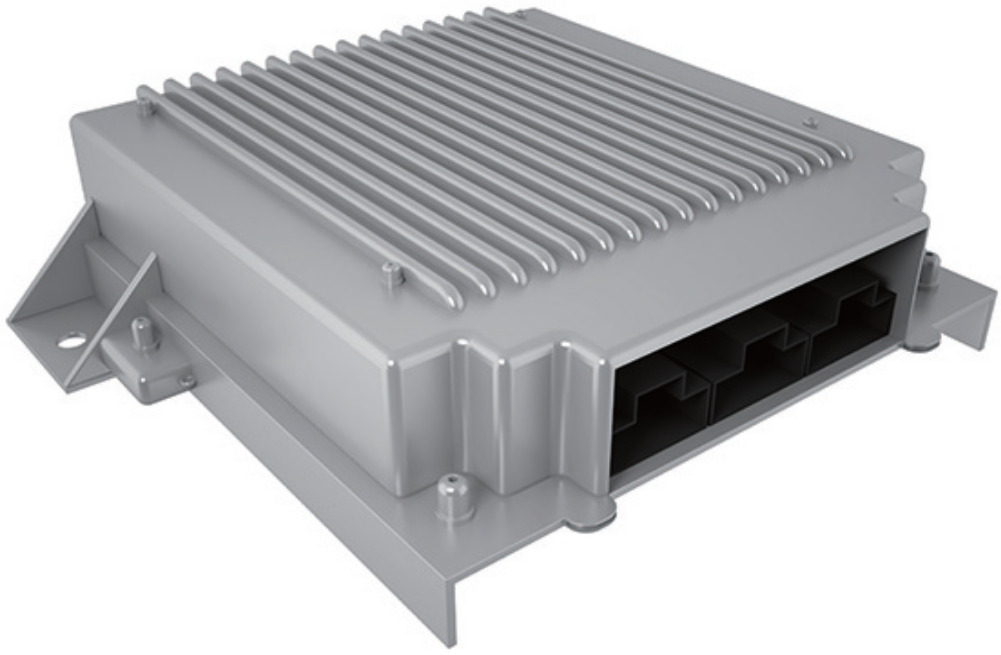

The increasing amount of heat generated around engines in in-vehicle equipment and the increasing sophistication of devices have increased the needs of connectors to have high-heat resistance.

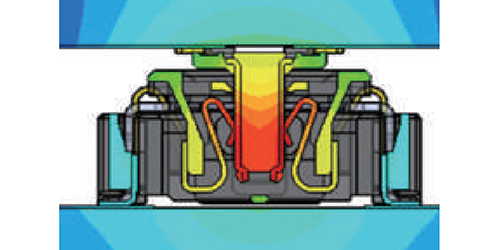

Our highly heat-resistant products created with our material and design technology, can be used with confidence even in harsh, high-temperature environments of up to 125°C.
Related Articles
Solutions
Connector Specifications
| 10143B | 10143S | 10144B | 10143S | |
|---|---|---|---|---|

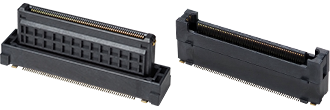

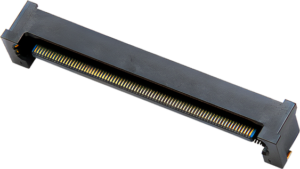

| Product Images |  |
 |
 |
|
| Board Mounting Method | Vertical | Right Angle | Vertical | |
| Pin Count (Pin) | 20～160 | 20～160 | ||
| Stacking Height (mm) | 10.0～30.0 | – | ||
| Board Mounting Method | SMT | |||
| Pitch | 0.5mm | |||
| Transmission Speed | 25 Gbps | |||
| Rated Voltage | 50 V（AC,DC） | |||
| Rated Current (Signal) | 0.5A | |||
| Rated Current (Power Supply) | 3.0 A | |||
| Operating Temperature Limit | -40～+125℃ | |||
| Array | Dual Row | |||
| Connection Method (Contact) | 1 point | |||
| Floating Structure | X: ±0.8 Y: ±0.8 | |||
Go to the product search for other series.
We may make changes to the contents and specifications when needed.
We can offer the best products that meet your needs. Feel free to contact our office if you consider your options.

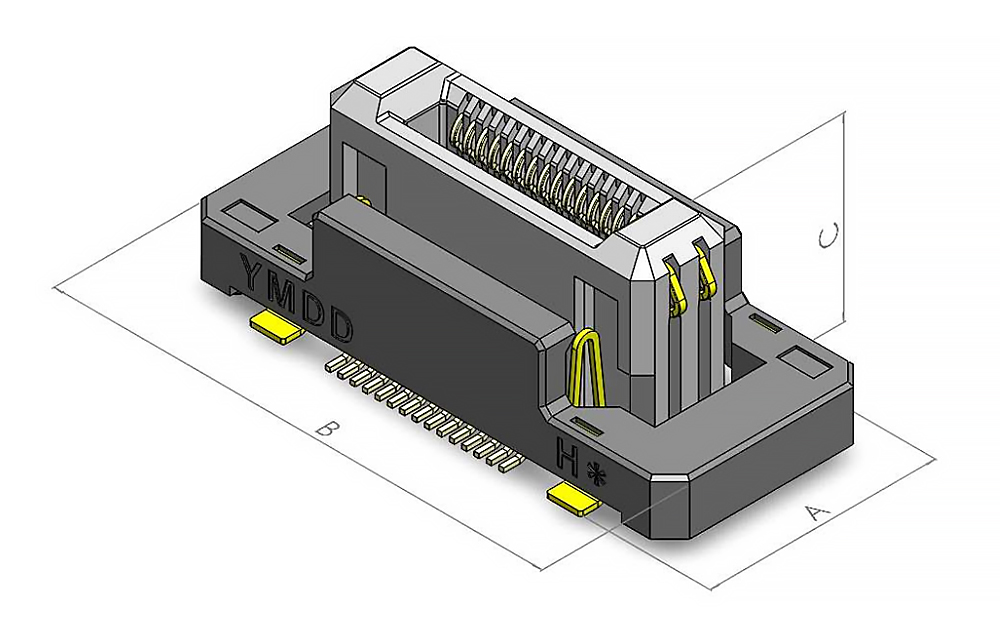

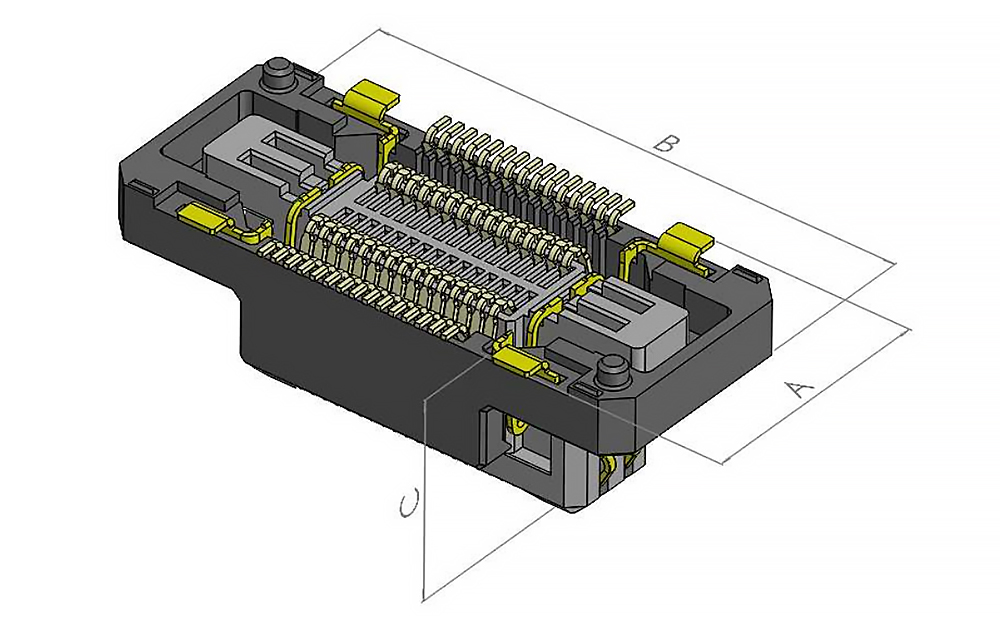

Approximate Dimensions

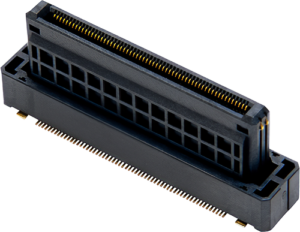

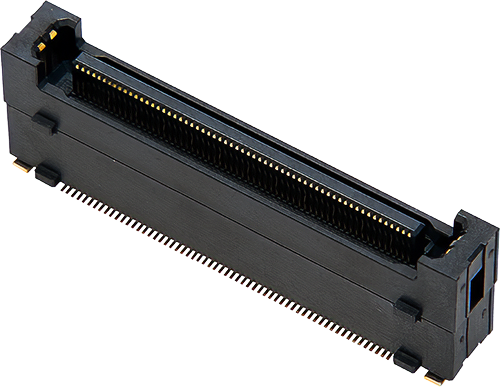

10143B
| Pin Count | Product Number | A | B | C. |
|---|---|---|---|---|
| 20 | IMSA-10143B-20A/B-GFN4 | 7.40 | 15.5 | 6.6 |
| 40 | IMSA-10143B-40A/B-GFN4 | 7.40 | 20.5 | 6.6 |
| 60 | IMSA-10143B-60A/B-GFN4 | 7.40 | 25.5 | 6.6 |
| 80 | IMSA-10143B-80A/B-GFN4 | 7.40 | 30.5 | 6.6 |
| 100 | IMSA-10143B-100A/B-GFN4 | 7.40 | 35.5 | 6.6 |
| 120 | IMSA-10143B-120A/B-GFN4 | 7.40 | 40.5 | 6.6 |
| 140 | IMSA-10143B-140A/B-GFN4 | 7.40 | 45.5 | 6.6 |
| 160 | IMSA-10143B-160A/B-GFN4 | 7.40 | 50.5 | 6.6 |

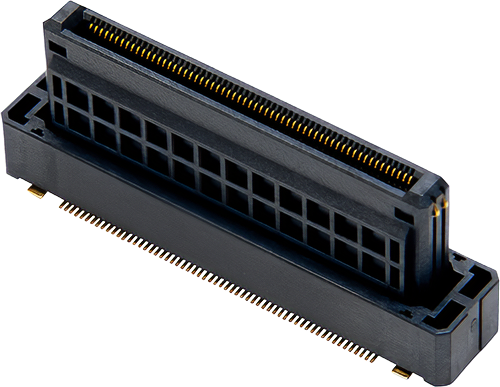

10149S
| Pin Count | Product Number | A | B | C. |
|---|---|---|---|---|
| 20 | IMSA-10143S-20C/D-GFN4 | 9.1 | 17.2 | 7.3 |
| 40 | IMSA-10143S-40C/D-GFN4 | 9.1 | 22.2 | 7.3 |
| 60 | IMSA-10143S-60C/D-GFN4 | 9.1 | 27.2 | 7.3 |
| 80 | IMSA-10143S-80C/D-GFN4 | 9.1 | 32.2 | 7.3 |
| 100 | IMSA-10143S-100C/D-GFN4 | 9.1 | 37.2 | 7.3 |
| 120 | IMSA-10143S-120C/D-GFN4 | 9.1 | 42.2 | 7.3 |
| 140 | IMSA-10143S-140C/D-GFN4 | 9.1 | 47.2 | 7.3 |
| 160 | IMSA-10143S-160C/D-GFN4 | 9.1 | 52.2 | 7.3 |

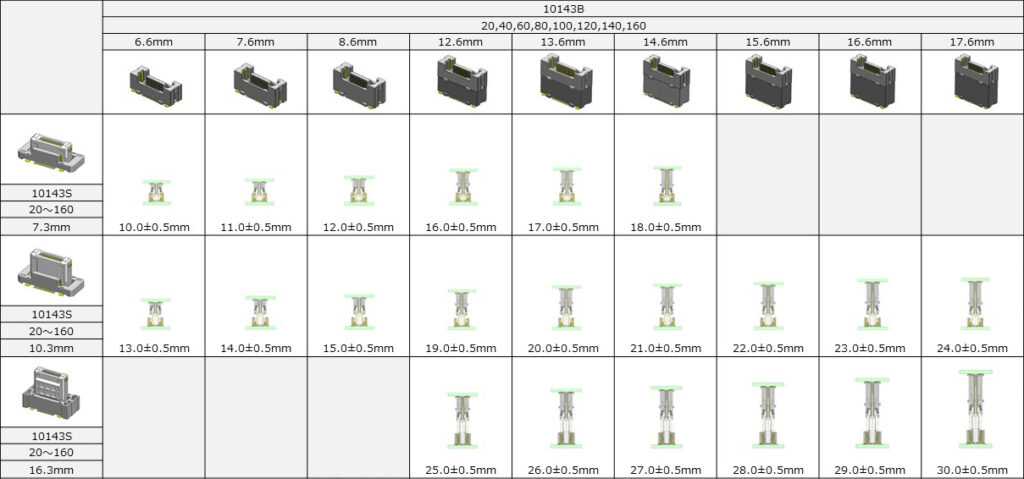

Wide Range of Product Variations
A wide range of products are available, with mating heights of 10 to 30 mm and pin counts ranging from 20 to 160.
Development Background
As global environmental issues have been more urgent, the global shift towards electric vehicles (EVs) has been driven by the global trend for sustainable transportation and reduced fossil fuel dependence. IRISO Electronics Co., Ltd. has been focusing on the development of connectors suitable for EV ECU devices and such to contribute to a carbon-neutral society.
We have developed BtoB connectors suitable for in-vehicle environments, helping reduce the size and weight of devices.
- – 0.5mm pitch
- – Power terminal included
Functions and Characteristics
Transmission Characteristics – S-Parameters
The products provide valid data of various S-parameters, and their characteristic impedance is adjusted to meet various transmission standards.

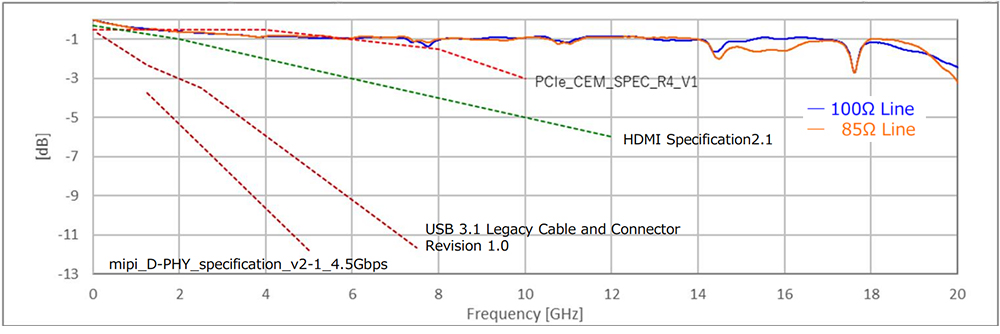

Insertion Loss (Sdd21)

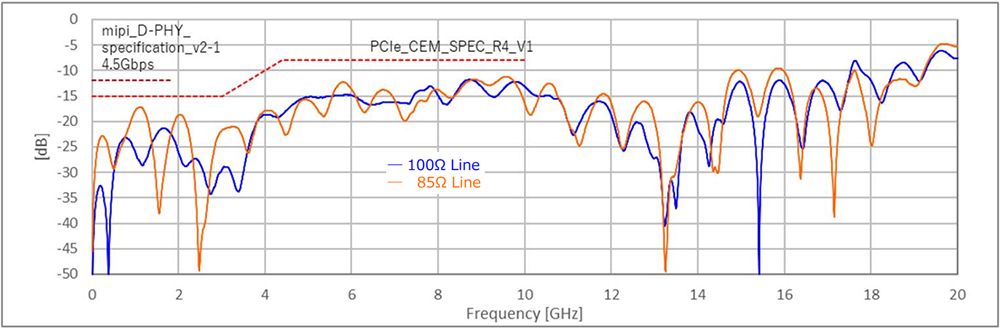

Return Loss (Sdd11)

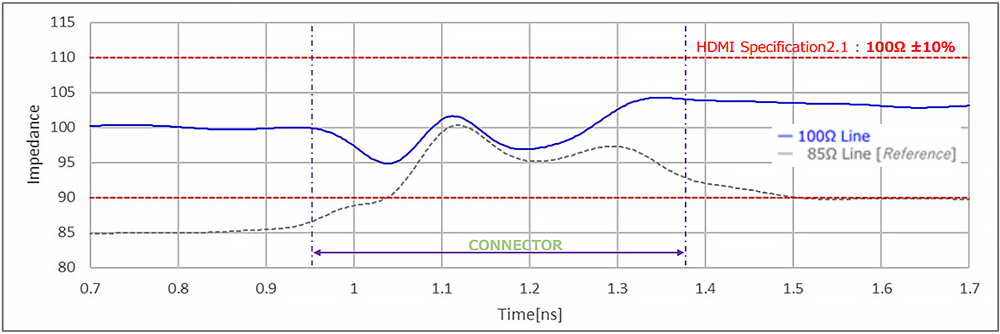

Differential Impedance
[Rise time: 75ps 10% to 90%]

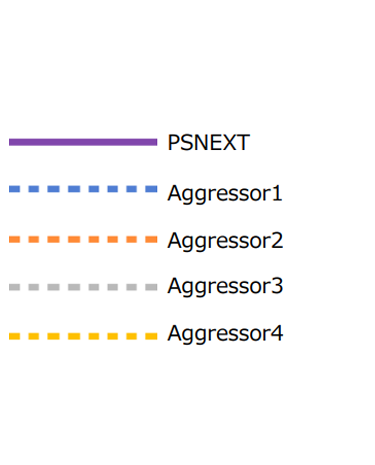

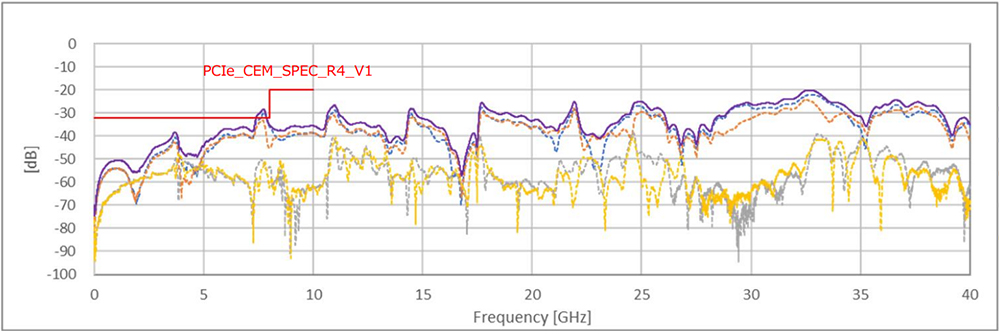

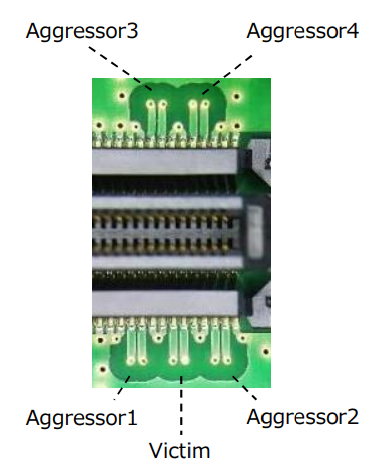

Differential Near End Crosstalk
(PSNEXT)

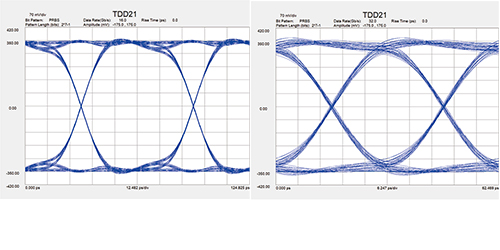

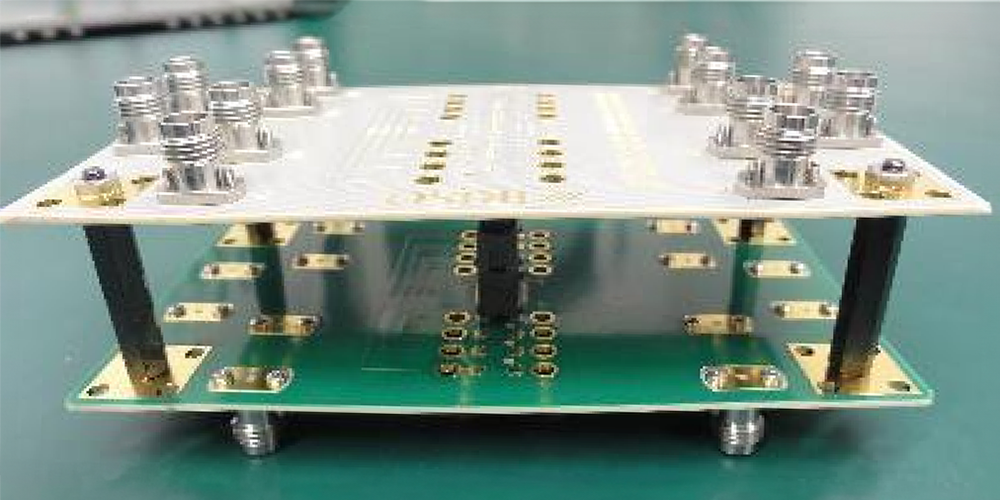

Transmission Characteristics – High-Speed Transmission at 25Gbps
This product has also been adopted and used for board-to-board connections within 5G wireless base stations to support high-speed transmission at 25Gbps*.
*When measured according to the "OIF CEI-28G-SR" standard
※Resource: OIF Forum CEI-28G-VSR
PIN Assignment
Reference for OIF CEI-28G-SR (25Gbps+)

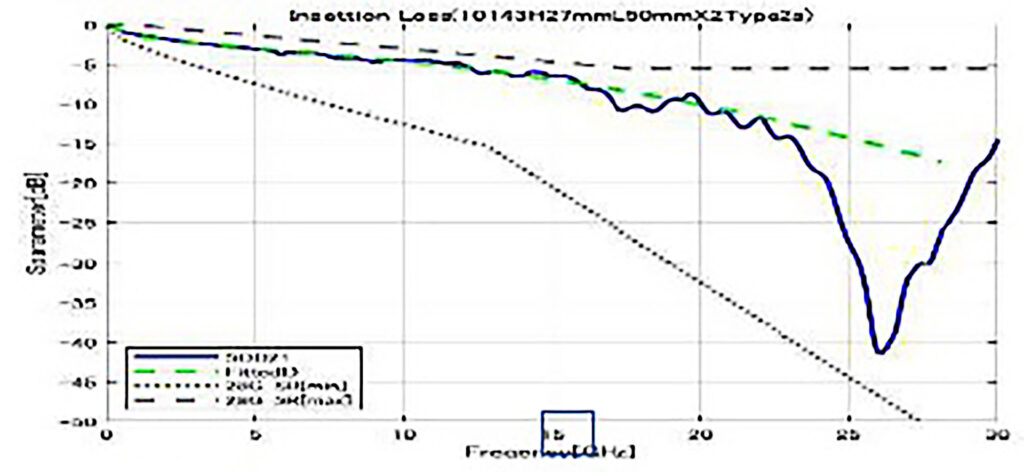

Insertion Loss

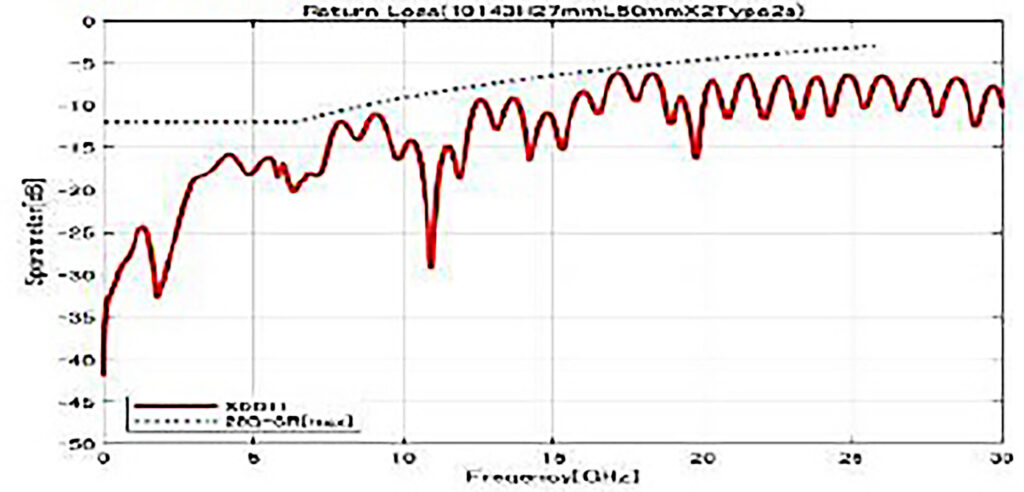

Return LoSS
Mechanical Reliability
We assume misalignment within the allowable floating range and put stress on purpose at the time of maximum floating to check the occurrence of solder joint fractures. We also observe cross sections and resistance fluctuations during the test to ensure the solder joint reliability.
- Thermal shock: 0 to 100°C (Duration 15 minutes)
- Number of cycles: 3,000 cycles
- Crack Rate: See below

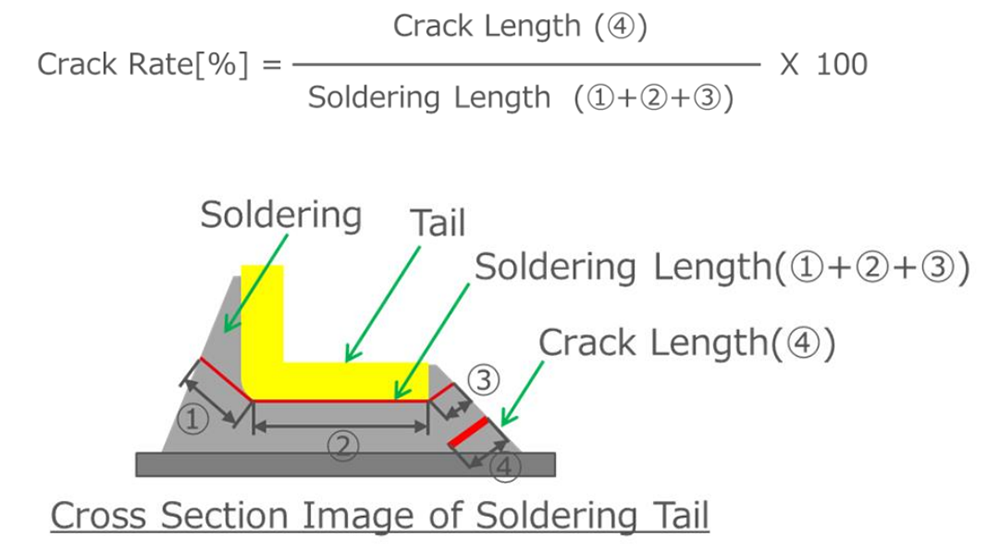

Crack Rate

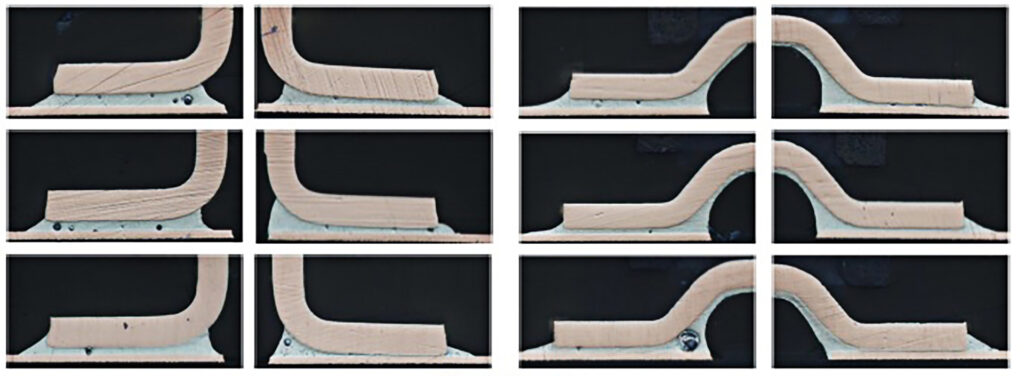

Cross Section Observation of a Solder Joint

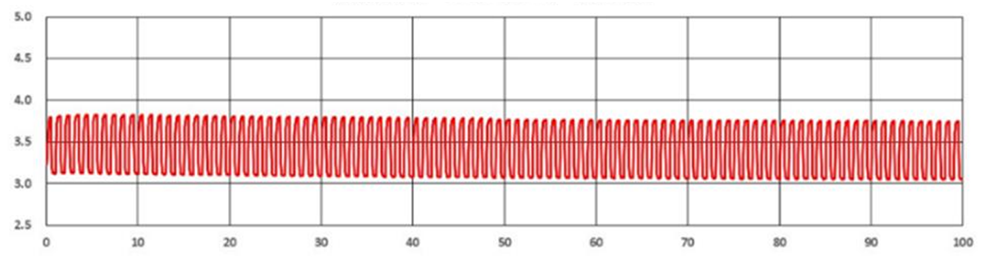

Check Resistance Fluctuations
Thermal shock test (0 to 100 cycles) Floating

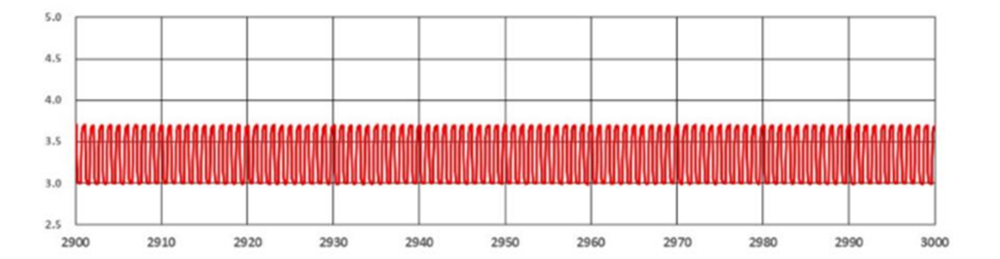

Thermal shock test (2900-3000 cycles) Floating
